The GrindControl monitors and records the development of pressure and temperature of a ball mill process.
Monitoring the two variables "pressure" and "temperature" provides valuable information about what is happening inside the grinding jar. GrindControl is used to improve sample preparation, for example of temperature-sensitive materials, to control colloidal or long-term grinding processes, or to successfully perform material synthesis such as mechanical alloying or mechanochemical processes.

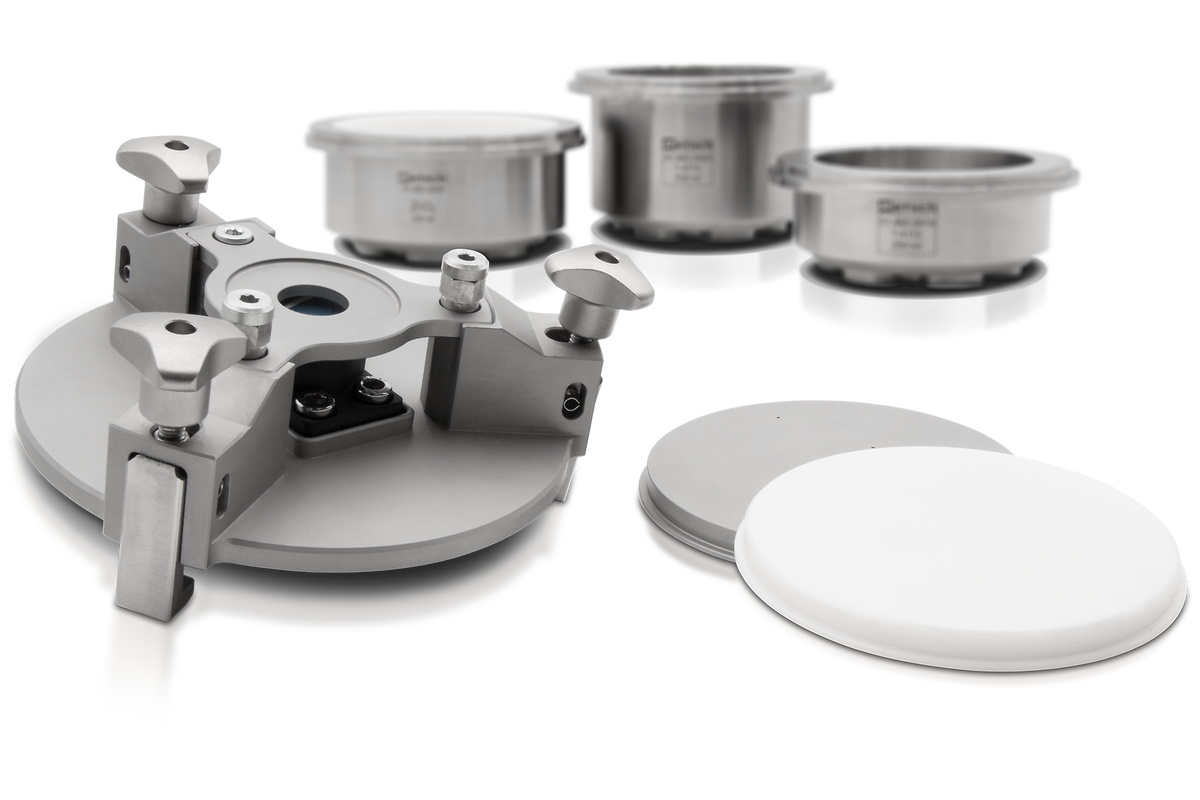

The GrindControl system is available for the planetary ball mills PM 100, PM 300 and PM 400 as well as for the Mixer Mills MM 500 nano and MM 500 control and for the High-Energy Ball Mill Emax. The system consists of the pressure and temperature measurement hardware and an analysis software.
Monitoring and documentation of the temperature and the pressure inside the grinding jar are of interest in research as well as in quality control.
It helps to improve:
Quality - Temperature and pressure can significantly affect the quality of the final product prepared in the ball mill. Monitoring these two variables ensures the quality of the final product.
Efficiency - The temperature development of a grinding process have a considerable influence on the grinding result of a material, as some material properties depend on temperatures. By monitoring the actual temperature, it can be ensured that the sample is processed under optimum conditions.
Safety - During a ball milling process, high temperatures and pressures can be potentially dangerous. Monitoring the temperature and pressure helps to ensure that the ball mill process remains within specified limits.
Error detection - A sudden change in temperature or pressure in a ball mill process can indicate that the grinding process is not running optimally. By continuously monitoring these parameters, deviations can be detected at an early point, allowing potential problems to be quickly identified and corrected.
The GrindControl software is a small and intuitive program, that can be easily installed on the computer. The software records and stores the transmitted data of pressure and temperature. The data is monitored in real time during a measurement and can be exported in .pdf or .csv format after the measurement.
More software features:
Monitoring the two variables "pressure" and "temperature" provides valuable information about what is happening inside the grinding jar. RETSCH’s GrindControl system is used to control colloidal or long-term grinding processes, or to successfully perform material syntheses such as mechanical alloying or other mechanochemical processes. The GrindControl system is available for the Planetary Ball Mills PM 100, PM 300 and PM 400, for the Mixer Mills MM 500 nano and MM 500 control and also for the High-Energy Ball Mill Emax. It comprises hardware for pressure and temperature measurement plus analysis software.
A mechanochemical synthesis was conducted in a Mixer Mill MM 500 nano, using a 125 ml stainless steel grinding jar, equipped with GrindControl for gas and pressure monitoring. The elemental precursors were introduced to the jar together with 32 x 10 mm stainless steel balls. The reaction was conducted under air atmosphere, at 20 Hz. The milling process was stopped when a sudden change in the temperature and pressure indicated the successful completion of the MSR.

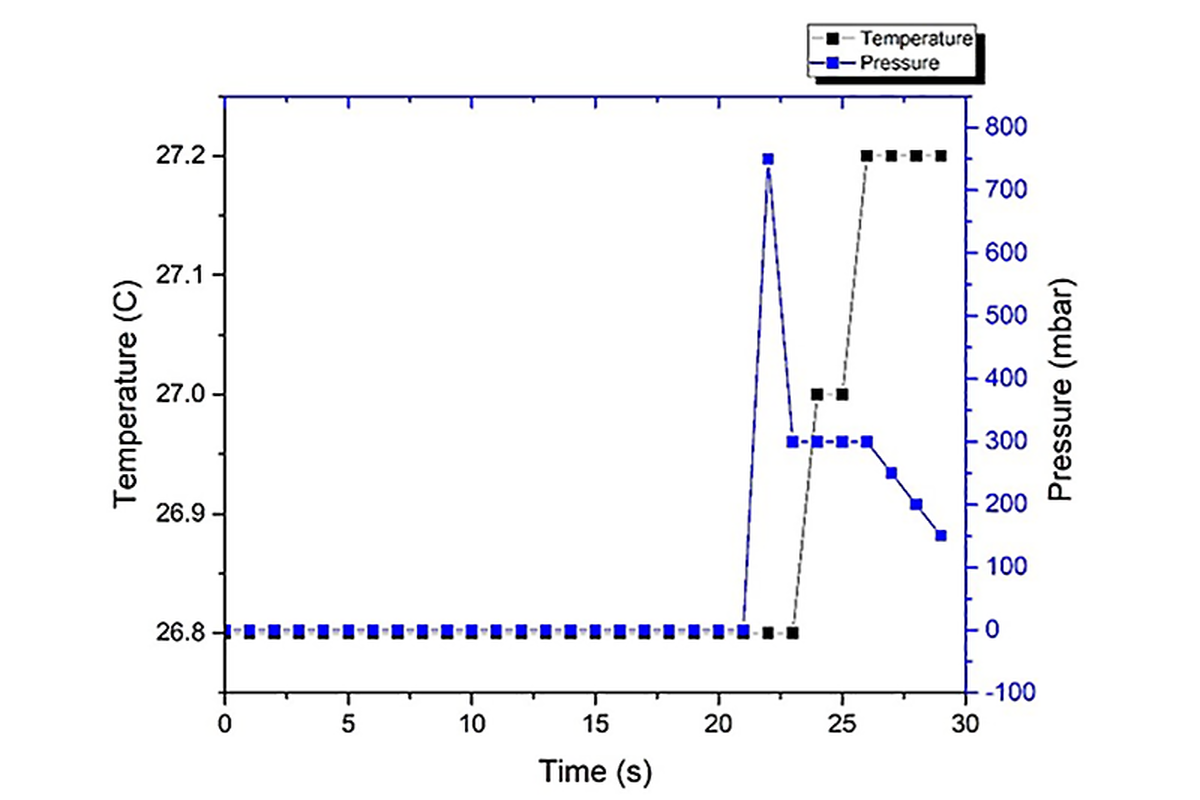

The mechanically-induced self-propagating reaction event in the synthesis was monitored by using the GrindControl system. After 20 seconds of milling, an explosion took place, leading to a pressure increase from 0 to 730 mbars and to a rise in temperature. In this application, GrindControl allowed to precisely observe the ignition time during synthesis, the only parameter of interest for the reaction. [8]
When preparing temperature-sensitive materials for analysis, it is important to ensure that the substances to be analysed are not altered by heating during homogenization. For example, if the temperature rises above 40°C during the grinding process, APIs, vitamins or volatile components may be altered.
In wet grinding processes, the temperature inside the jar increases significantly due to high energy input and longer grinding times. In addition, also pressure levels can be high, for example when alcohols are used as dispersion media. Monitoring temperature and pressure helps ensure safer operations and facilitates process management.
When ball mills are used to convert chemical processes, specific temperature or pressure conditions are required to achieve the desired properties of the end product. Pressure and temperature measurements can be used to study the conditions under which specific reactions take place.

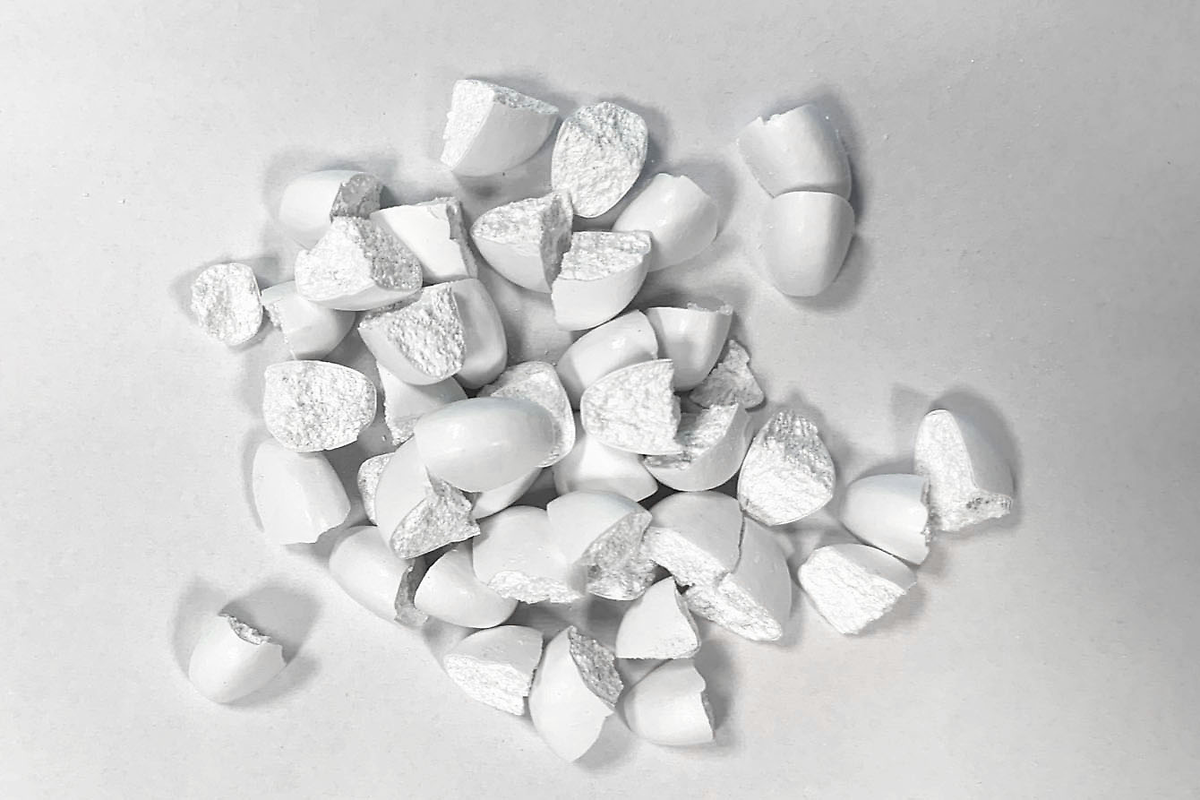

Temperature-controlled sample preparation of tablets

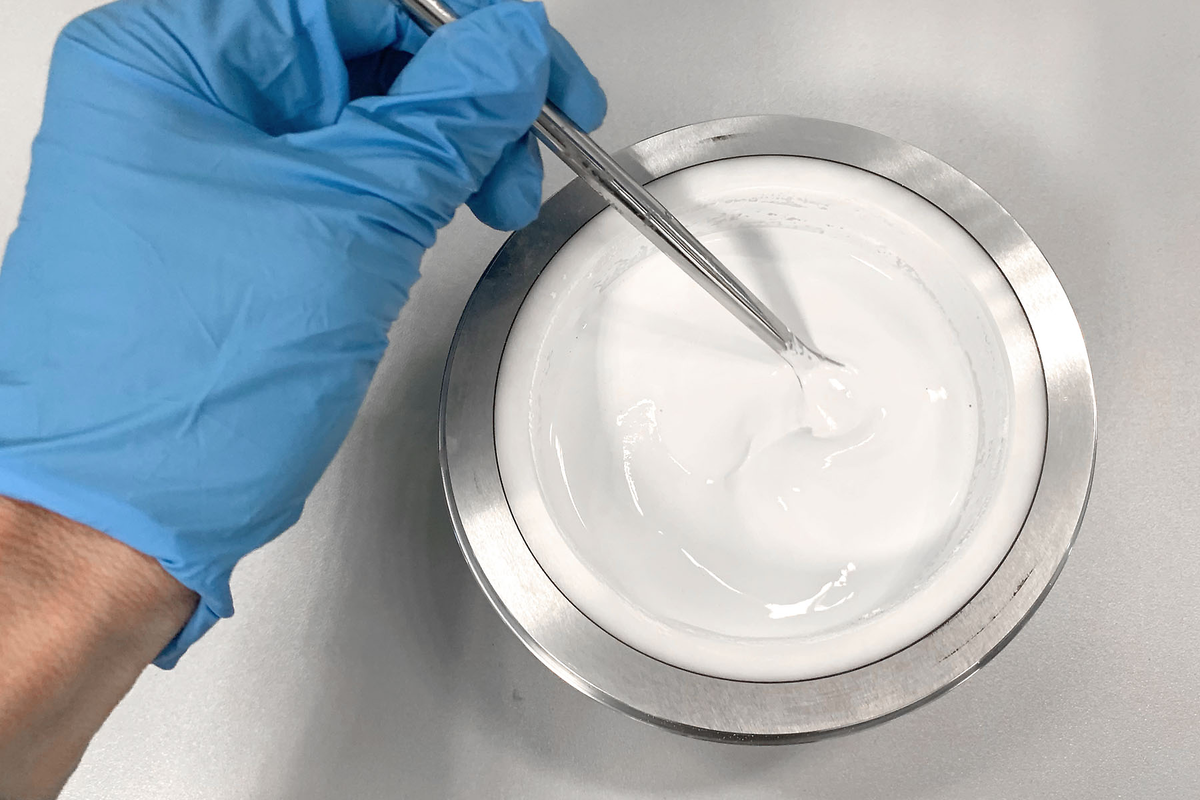

Monitoring of temperature and pressure in wet grinding processes

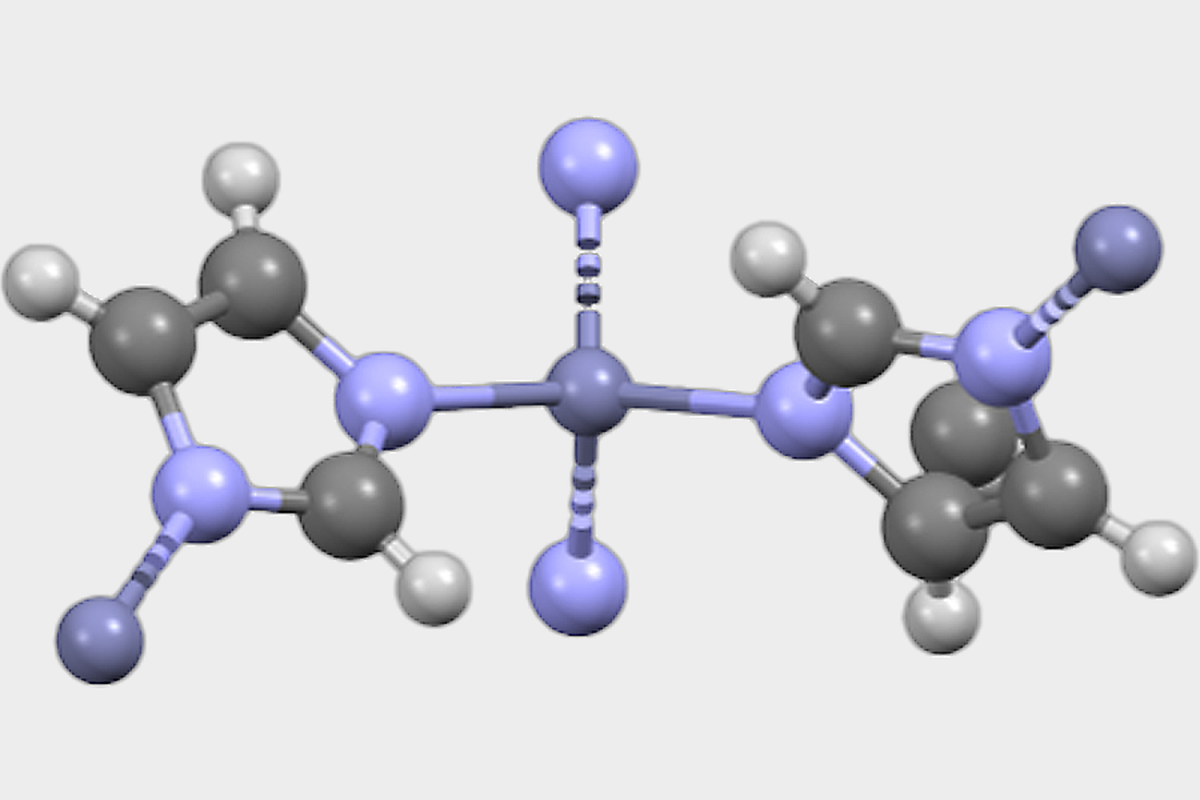

Temperature monitoring of mechanochemical reactions
To find the best solution for your sample preparation task, visit our application database.

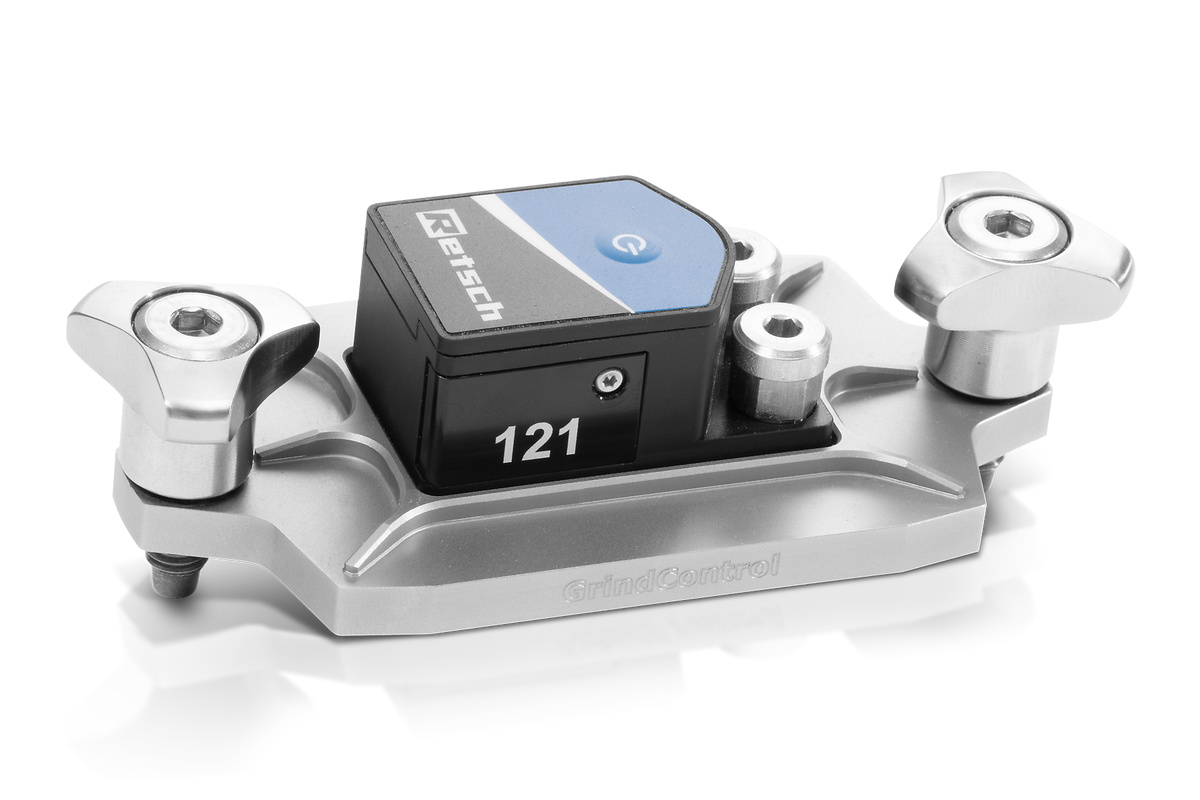

A transmitter is integrated in the lid and sends the signals of the pressure and temperature sensor data to a receiver that is plugged into the PC. A secure industry standard protocol is used for transmission. To detect the temperature inside the grinding jar, the temperature sensor is thermally decoupled. A filter is used to protect the pressure sensor from contamination.
The GrindControl software is an intuitive program that allows to record the measured variables in real time making them available for later evaluation. The measurement data is transferred to the PC and a measurement protocol is stored in a consecutive measurement list. The data can be exported for further processing.
| funksjon | pressure and temperature measuring on PM 100, PM 300, PM 400, Emax, MM 500 nano/control |
| bruksområde | biologi, byggematerialer, geologi / metallurgi, glass / keramikk, kjemi / plast, maskinbygging / elektroteknikk, material synthesis/ agriculture, matvarer, medisin / legemidler, miljø / gjenvinning |
| matemateriale | hardt, middels hardt, mykt, sprøtt, elastisk, fibrøs |
| nedmalingsprinsipp | sammenstøt, friksjon |
| måleområder | gas pressure: 0 - 500 kPa (5 bar) temperature: -25°C - +90 °C (accuracy 1% for 0 - 70 °C) |
| prøvevolum* | 45 ml (MM); max. 220 ml (PM) |
| tørr nedmaling | ja |
| våtmaling | ja |
| kryogen nedmaling | yes min. -25 °C |
| type malebeger | Screw-Lock (MM) and EasyFit jars (PM) with integrated safety closure devices |
| material i maleverktøyet | hardened stainless steel, zirkoniumoksid |

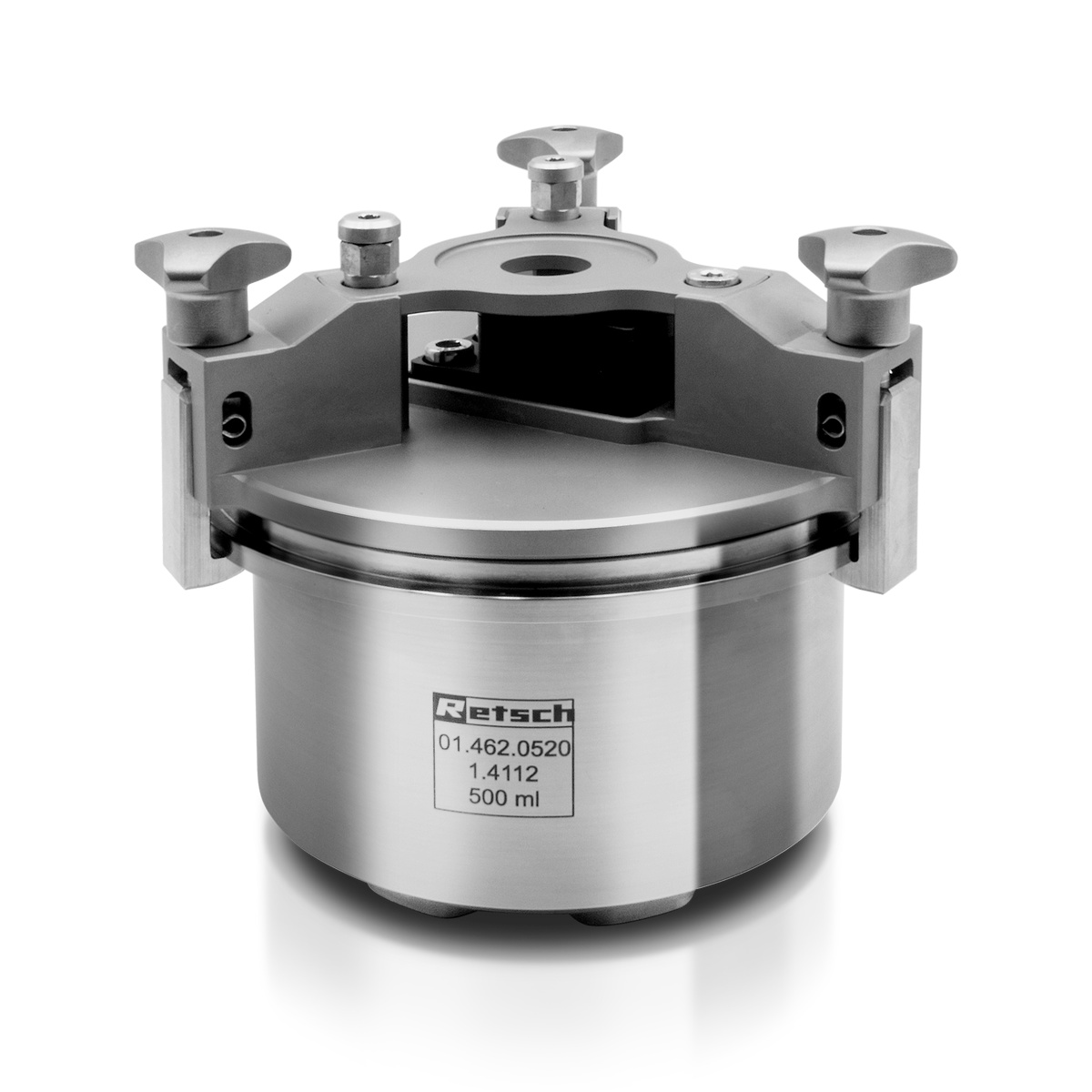

| Størrelse på malebeger | 125 ml (MM); 250 ml & 500 ml (PM) |
| Transmission frequency | 1 /s |
| Grensesnitt | PC Software "GrindControl-Center" (Bluetooth connection up to 5 m) |
| Elektriske tilkoblingsdata | battery (up to 90 h operation time) |

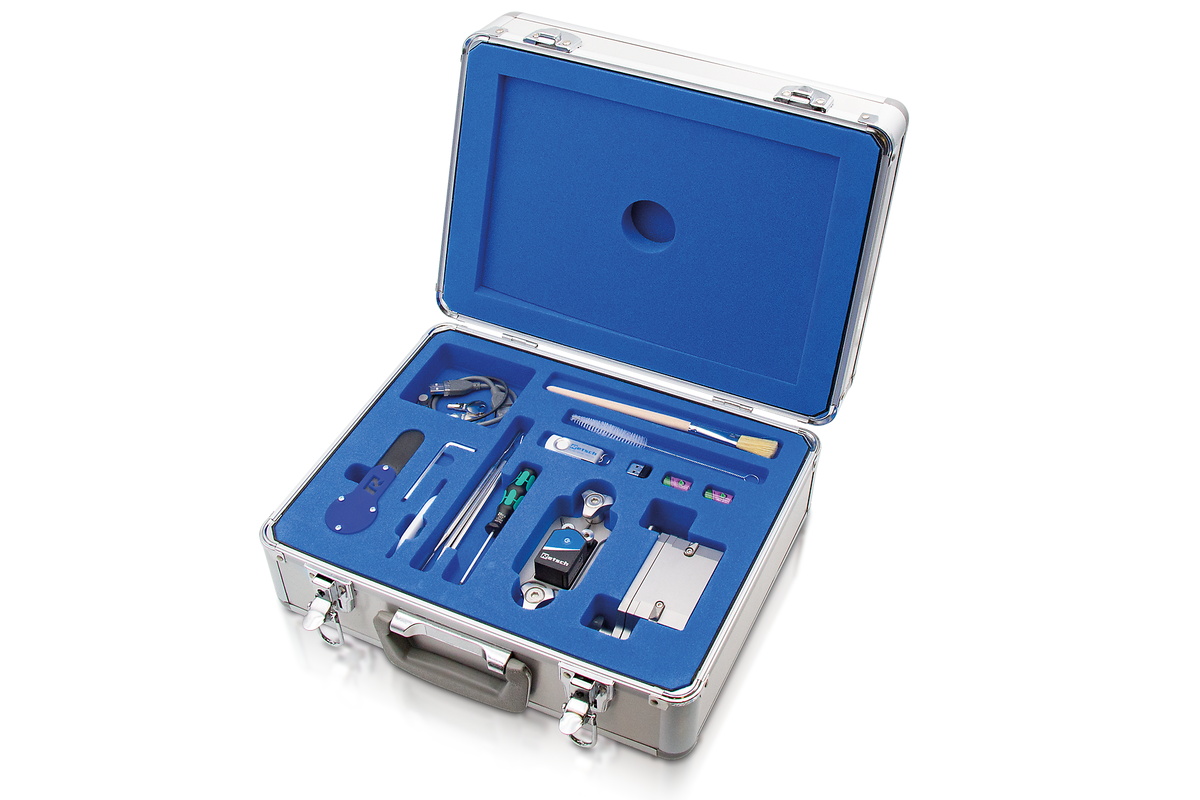

| Tilbehør | grinding jar, opening aid, cleaning tools, o-ring, PC-software (PC not included), USB-Bluetooth dongle, filter |
| nettovekt | lid with sensor unit 1660 g (PM); 340 g (MM) |
| Normer / standarer | CE |
| Technical requirements | PC with min. Windows 10 and USB 2.0 |
| Software | live monitoring of measurement data, full measurement protocol, storable templates, list of performed measurements, data export in .pdf and .csv |
Med forbehold om feil og tekniske endringer
[8] Reaction scheme and performance of the experiments: Dr. Matej Balaz, Institute of Geotechnics, Slovak Academy of Sciences (SAS).
