Skivemølle MM 500 vario Variability redefined

Request a quote
Create PDF

Language:

Processing 2 to 50 samples in one batch

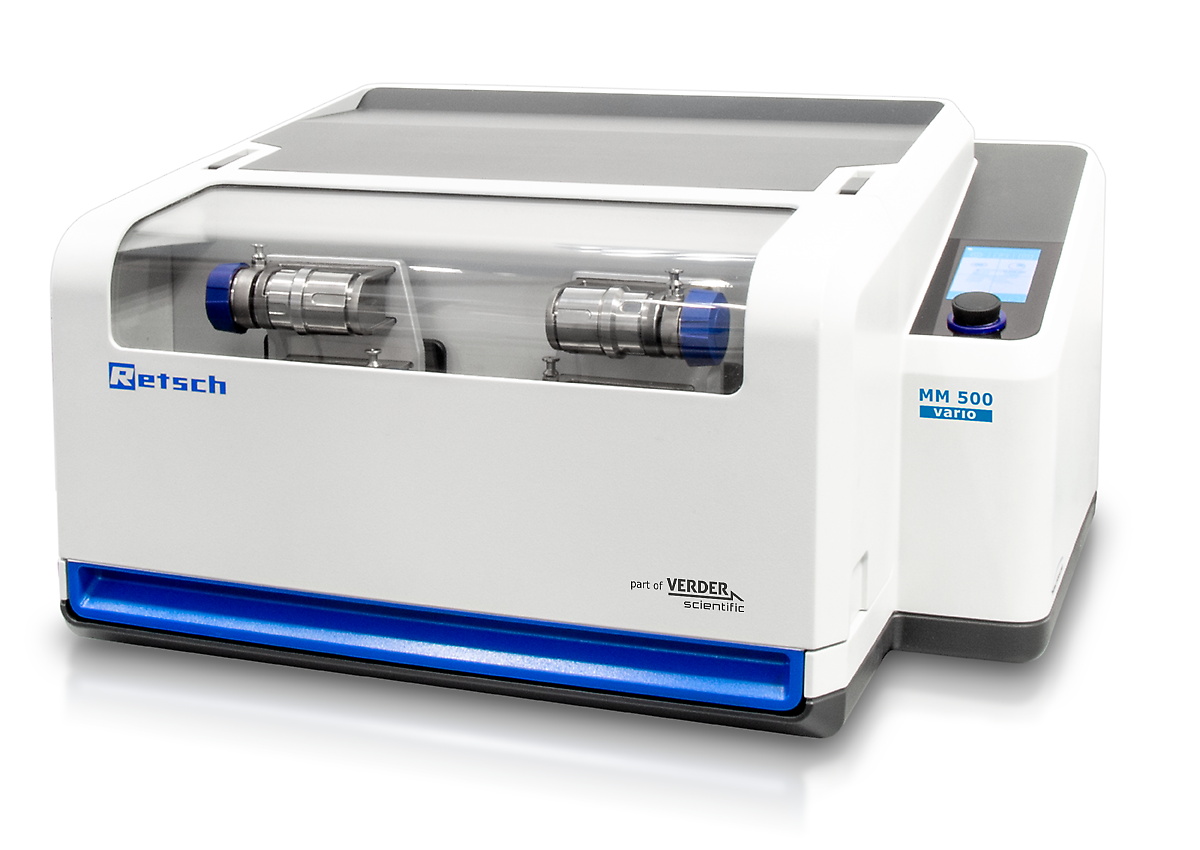

The new Mixer Mill MM 500 vario is a versatile bench-top unit which provides ultimate performance with maximum flexibility for your sample preparation process.

It is used for dry, wet and cryogenic grinding of small sample amounts with high throughput. The MM 500 vario can be equipped with screw-top grinding jars from 1.5 ml to 50 ml. Available materials include hardened steel, stainless steel, tungsten carbide, agate, zirconium oxide, PTFE.

For biological applications such as homogenization of plant materials, tissues or for cell disruption via bead beating, the MM 500 vario can be equipped with different adapters for single-use vials from 0.2 - 5 ml.

The strong Mixer Mill for high throughput applications

  • Max. speed 35 Hz
  • Horizontal oscillation causes strong impact effects for effective sample processing
  • Up to 8 mm feed size and 5 µm final fineness
  • 6 grinding stations for jars of min. 2 ml and max. 50 ml, adapter holds up to 50 x 2 ml single use vials
  • Steel jars can be precooled manually in liquid nitrogen
  • Bench-top model, touch screen, storable SOPs and cycle programs, 7 different jar materials

Performance and design

  • Grind sizes down to 5 μm possible
  • Powerful pulverization with up to 35 Hz
  • Twice as fast as mills with only 30 Hz
  • Ergonomic design with touch display

Flexibility

  • Suitable for dry, wet or cryogenic grinding
  • Equally suited for rapid (<2 min) and long-term grinding (up to 99 hours)
  • 12 SOPs and 4 program cycles with max. 99 repeats facilitate routine applications
  • Grinding jars of various sizes and materials; adapters for single-use vials
Skivemølle MM 500 vario

Solutions for biological applications and cell disruption

Mixer mills are widely used for homogenizing biological samples such as tissue, liver, muscle, plants, corn or sputum. For cell disruption via bead beating mixer mills are also the perfect solution. The MM 500 vario accommodates adapters for different single-use vials:

0.2 ml / 1.5 ml / 2 ml / 5 ml

Depending on the tube and the type of adapter, 5-10 tubes can be inserted per adapter, resulting in the following maximum vial capacity per batch:

50 x 1.5 or 2 ml (or 60 x 0.2 ml)
20 x 5 ml

Typical grinding / homogenizing processes of biological materials take less than 2 min. Cell disruption with a good reproducibility and efficiency takes 20 sec to 5 min, depending on the cell type. Cryogenic grinding in single-use vials can also be a suitable way to pulverize tough or temperature-sensitive samples.

Solutions for biological applications and cell disruption
  • Maximum frequency of 35 Hz reduces grinding time to 50% compared to mixer mills with only 30 Hz

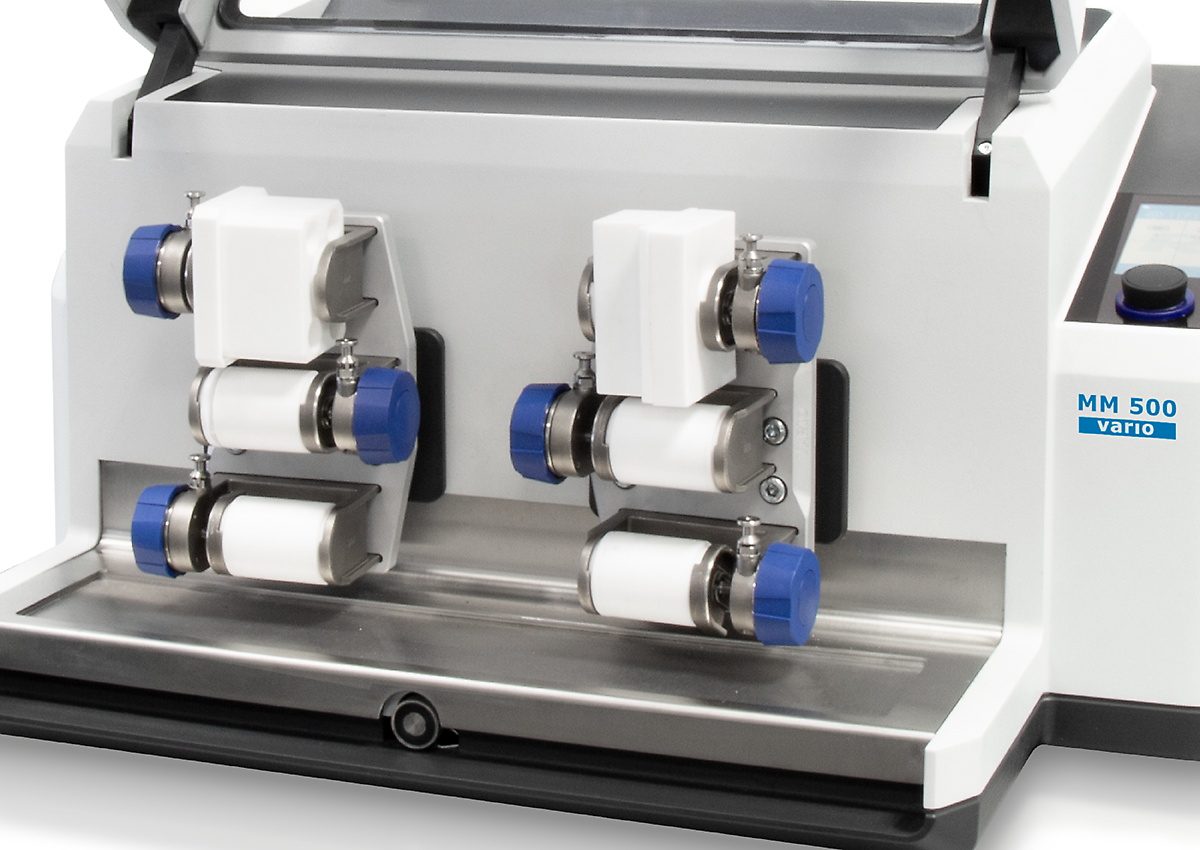

  • Six grinding stations instead of two, as in classic mixer mills, ensure high throughput

  • In combination, the throughput of the MM 500 vario is 6 times higher compared to a classic mixer mill
Skivemølle MM 500 vario: Grinding of basalt in the MM 500 vario results in better fineness compared to classic Mixer Mills thanks to the increased frequency of 35 Hz instead of 30 Hz (50 ml jar + 12 x 12 mm grinding balls).

Grinding of basalt in the MM 500 vario results in better fineness compared to classic Mixer Mills thanks to the increased frequency of 35 Hz instead of 30 Hz (50 ml jar + 12 x 12 mm grinding balls).

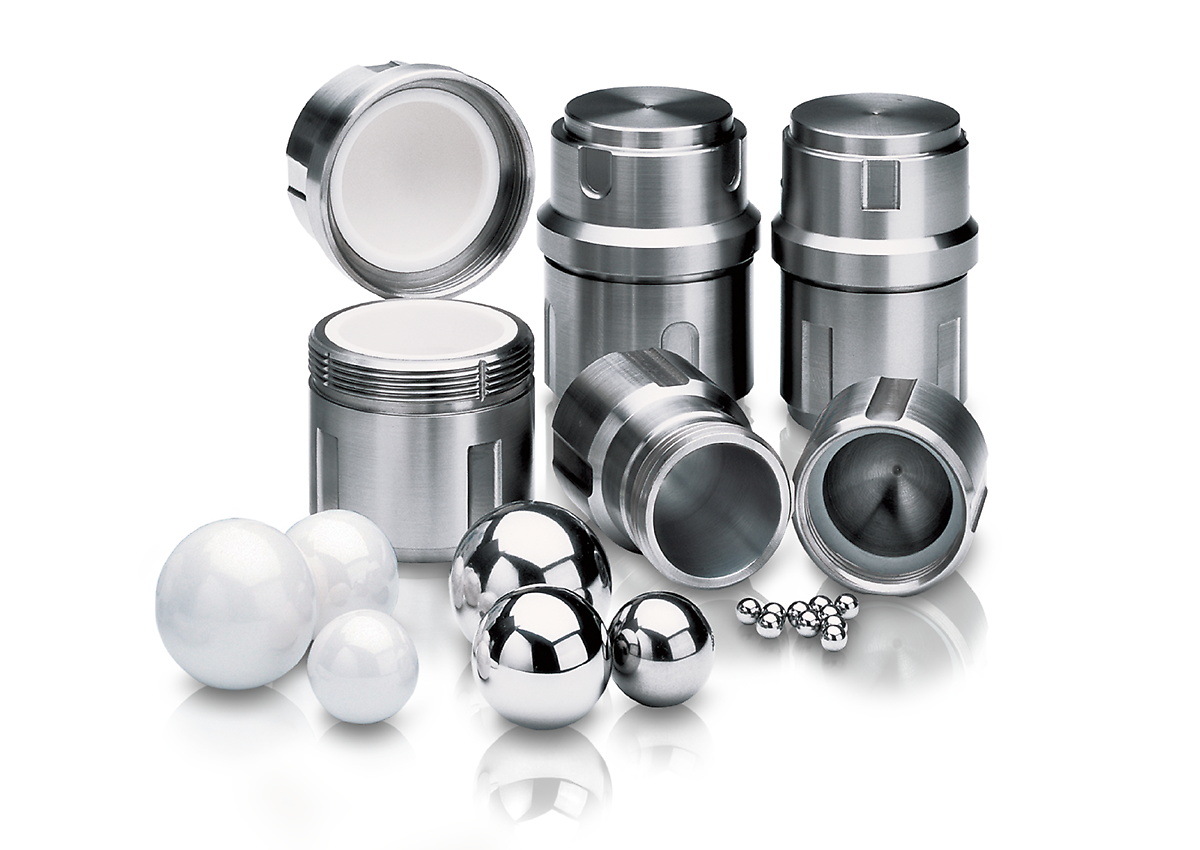

Skivemølle MM 500 vario: Grinding jars in 6 different materials

Grinding jars in 6 different materials

All grinding jars of the smaller MM 400 model are compatible with the MM 500 vario. The nominal volume ranges from 1.5 ml to 50 ml and available materials include hardened steel, stainless steel, agate, tungsten carbide, zirconium oxide and PTFE, ensuring contamination-free sample preparation.

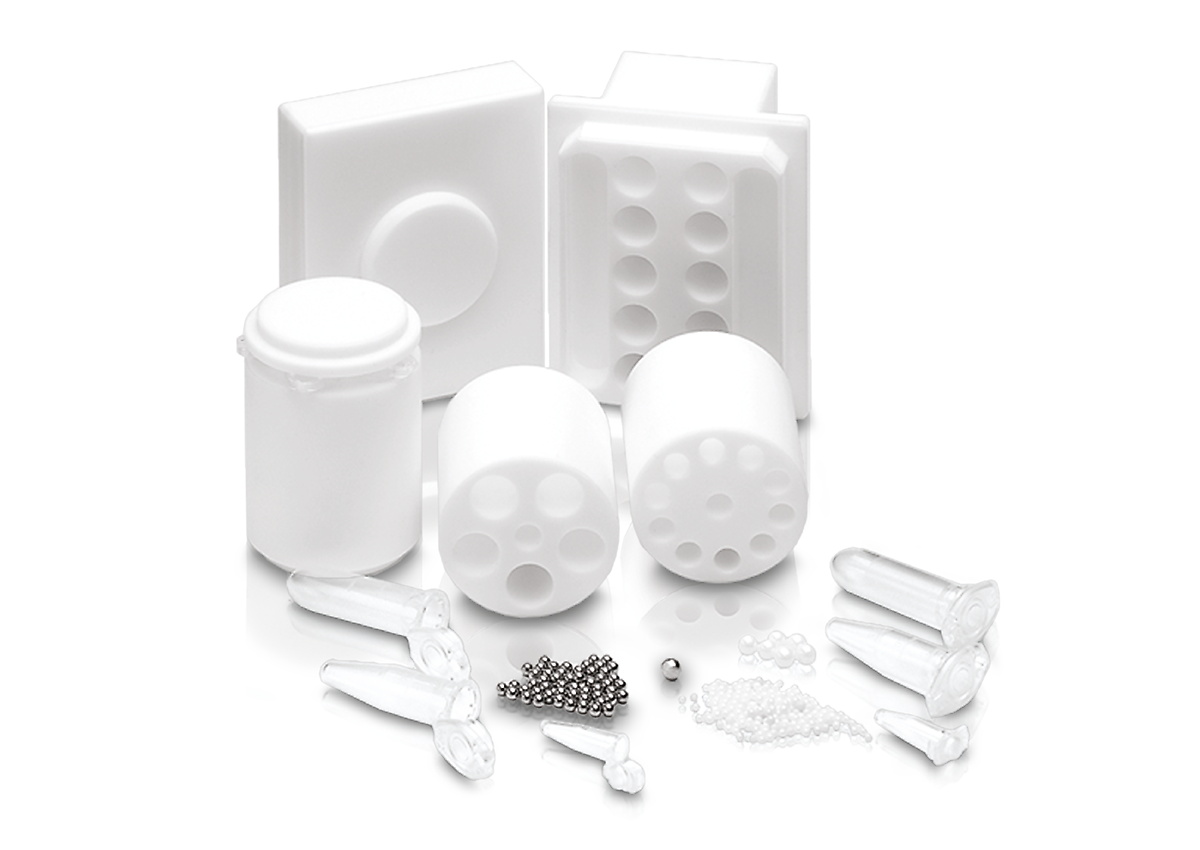

Skivemølle MM 500 vario: Adapters for single-use vials

Adapters for single-use vials

The adapters for 0.5 / 1.5 / 2 / 5 ml single-use vials of the smaller MM 400 model can be used in the MM 500 vario.

Typical Sample Materials

RETSCH mixer mills are true allrounders. They homogenize, for example, waste, soil, chemical products, coated tablets, drugs, ores, grain, tissue, glass, hair, ceramics, bones, plastics, alloys, minerals, oil seeds, plants, sewage sludge, pills, textiles, wool etc.

Typical Sample Materials : betong

betong

Typical Sample Materials : tre

tre

Typical Sample Materials : plastic granulates

plastic granulates

Typical Sample Materials : hår

hår

To find the best solution for your sample preparation task, visit our application database.

Skivemølle MM 500 vario Virkemåte

The grinding jars of the mixer mill MM 500 vario perform radial oscillations in a horizontal position. The inertia of the grinding balls causes them to impact with high energy on the sample material at the rounded ends of the grinding jars and pulverize it. Also, the movement of the grinding jars combined with the movement of the balls result in the intensive mixing of the sample. The degree of mixing can be increased even further by using several smaller balls.
