Cutting mills are the first choice for the size reduction of soft, medium-hard, tough, elastic, fibrous, and heterogeneous mixes of products.
The SM 100 is the budget-priced basic model among the RETSCH cutting mills. It is suitable for the size reduction of samples which don’t require extremely high forces. The mill has been specially designed for routine applications. It is easy to operate and can be mounted on a solid table or on the optional base frame.
The SM 100 can be equipped with different rotors, hoppers and bottom sieves. The mill and accessories, including cutting bars and cutting plates, are also available in versions for heavy-metal-free size reduction.

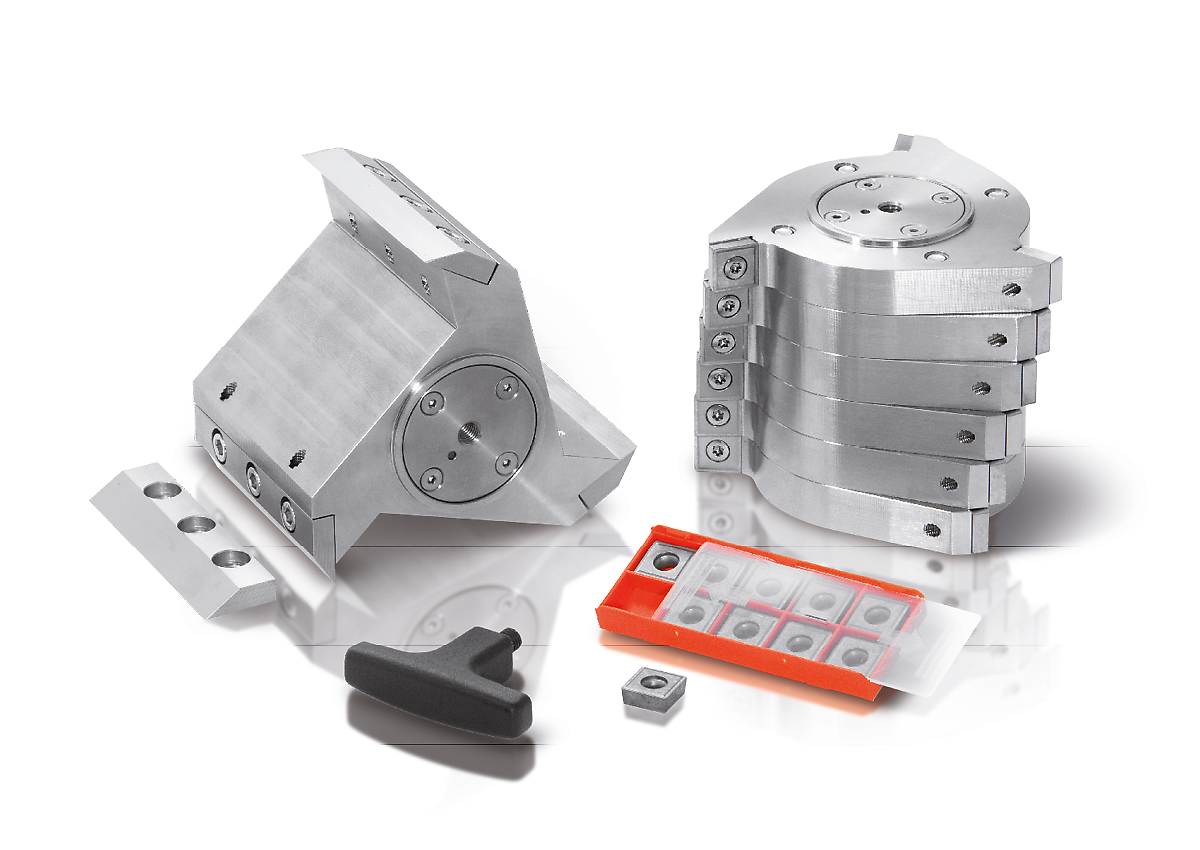

A parallel section rotor and a 6-disc rotor are available in stainless and heavy-metal-free steel for optimum adaptation to sample properties.
The SM 100 can be equipped either with the universal hopper, which is suitable for most samples, or the long-stock hopper which is specially designed for long samples.
The bottom sieves with trapezoid or square holes are made of stainless steel or heavy-metal-free steel.
RETSCH cutting mills are suitable for a vast range of applications. Typical materials include PET preforms, aluminium slag, animal feed, bones, cables, cardboard, electronic components, feed pellets, foils, food, leather, lignite, material mixtures, non-ferrous metals, paper, pharmaceutical products, plant materials, plastic toys, plastics, polymers, refuse derived fuels, resins, rubber, spices, straw, textiles, waste, wood, etc.
fisk
tre
nøtter
dyremat
To find the best solution for your sample preparation task, visit our application database.
Our instruments are recognized as the benchmark tools for a wide range of application fields in science and research. This is reflected by the extensive citations in scientific publications. Feel free to download and share the articles provided below.
| funksjon | størrelsesreduksjon ved kutting |
| bruksområde | biologi, kjemi / plast, landbruk, maskinbygging / elektroteknikk, matvarer, medisin / legemidler, miljø / gjenvinning |
| matemateriale | mykt, middels hardt, elastisk, fibrøs |
| nedmalingsprinsipp | skjæring, kutting |
| matestørrelse* | < 60 x 80 mm |
| sluttfinhet* | 0.25 - 20 mm |
| turtall ved 50 Hz (60 Hz) | 1,500 min-1 |
| rotorens perifere hastighet | 9.4 - 11.4 m/s |
| Rotordiameter | 129.5 mm |
| rotortyper | parallellkuttemotor / 6-platerotor |
| Traktetyper | standard, long stock |
| material i maleverktøyet | rustfritt stål, stål for tungmetallfri nedmaling, wolframkarbid |
| siktestørrelser | trapesformede hull 0.25 / 0.50 / 0.75 / 1.00 / 1.50 mm firkanthull 2.00 / 4.00 / 6.00 / 8.00 / 10.00 / 20.00 mm |
| Oppsamlingssystemer / innhold | collecting receptacle 5 l / optional: 30 l collecting unit 0.25 / 0.5 l |
| drift | trefasemotor |
| drivkraft | 1,5 kW |
| Elektriske tilkoblingsdata | ulike spenninger |
| Nettilkobling | 3-fase |
| kapslingstype | IP 54 |
| b x h x d lukket | 582 x 1675 x 700 mm (with base frame and standard hopper) |
| nettovekt | ~ 73 kg (uten trakt, rotor og stativ) |
| Normer / standarer | CE |
Size reduction in the Cutting Mill SM 100 takes place by cutting and shearing forces. The sample comes into contact with the rotor, and is comminuted between the blades and the stationary standard cutting bars inserted in the housing. In the 6-disc rotor, spirally arranged reversible hard metal plates operate by cutting in sequence. The knives of the parallel section rotor carry out comminution with a powerful cutting action. The dwelling time of the sample in the chamber is short; as soon as it is small enough to pass through the openings of the bottom sieve it is discharged through the gravity outlet and collected in the receptacle. The rotor speed of 1.500 min-1 ensures gentle and rapid size reduction.
Med forbehold om feil og tekniske endringer
