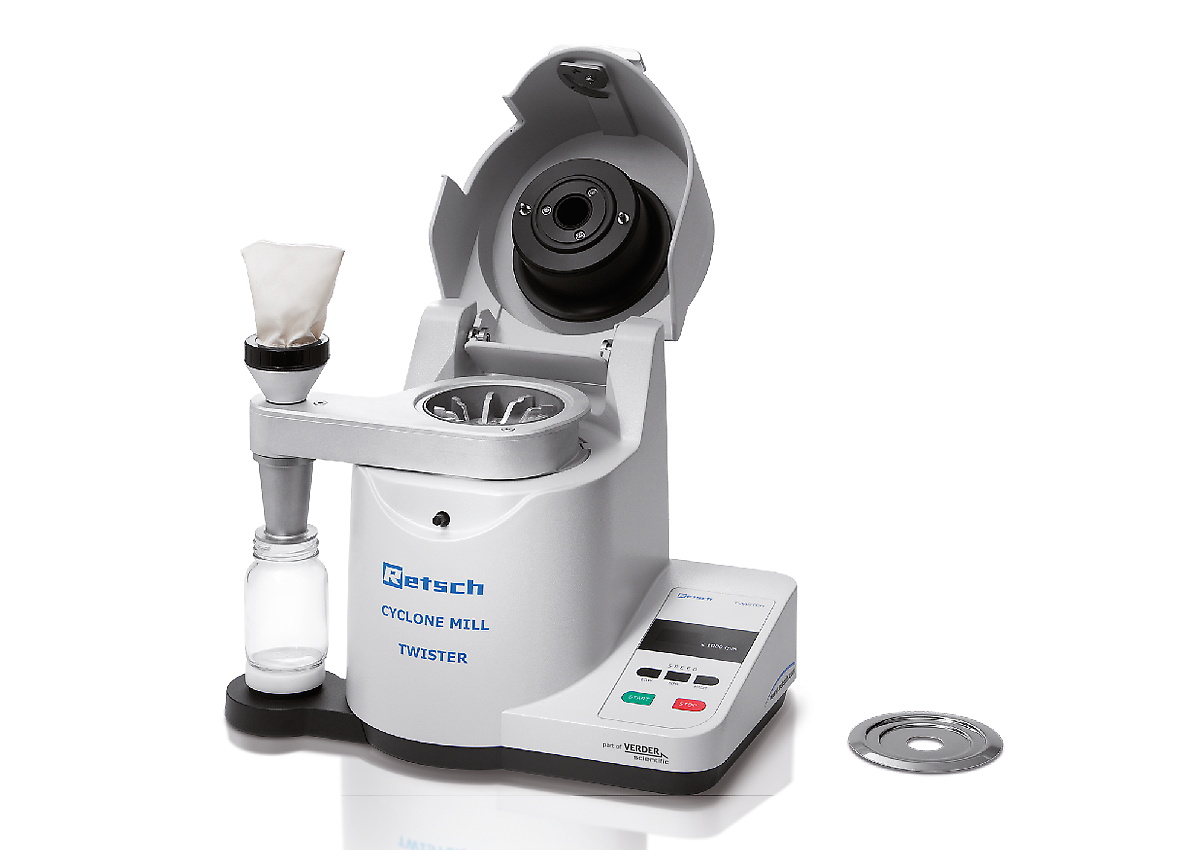

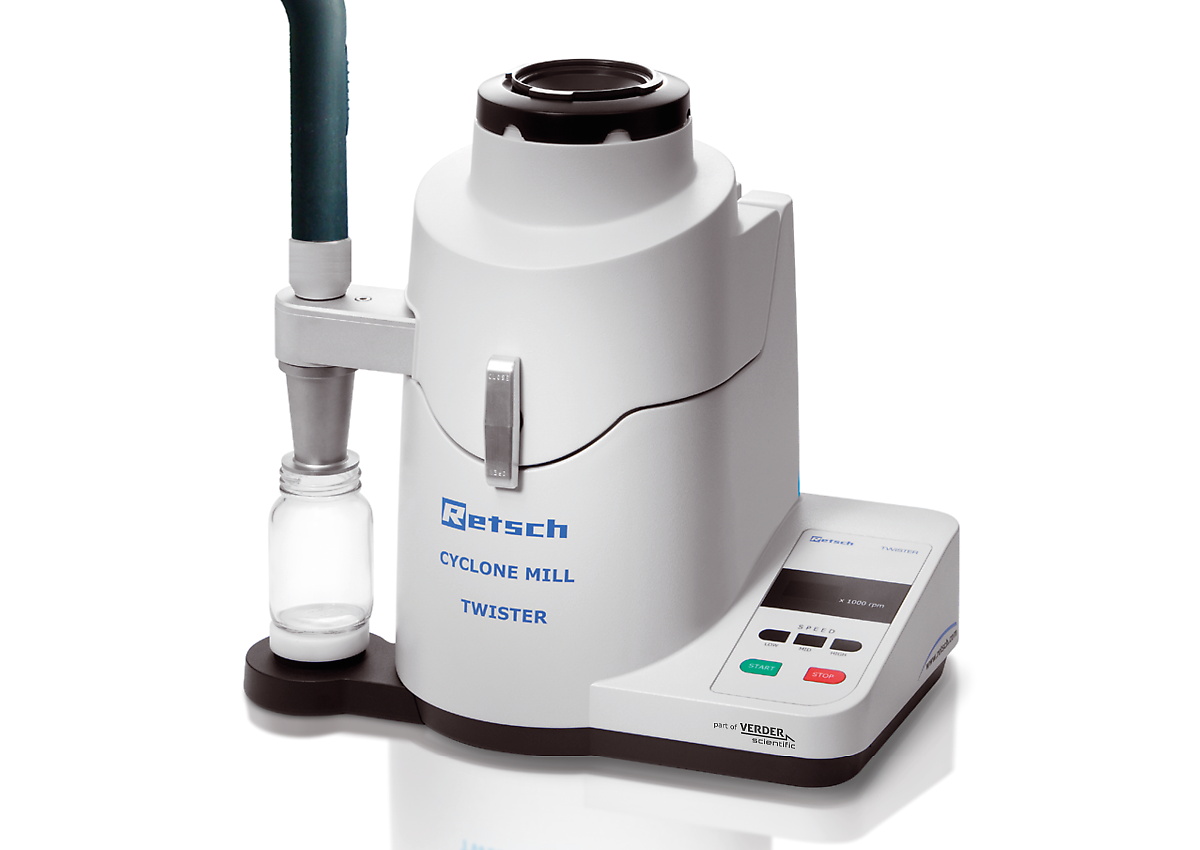

Syklonmølle TWISTER

The cyclone mill TWISTER is specially designed for the processing of foods and feeds for subsequent NIR analysis. The optimized form of rotor and grinding chamber generates an air jet which carries the ground sample through the integrated cyclone into the sample bottle. The air jet prevents the material from heating up, thus preserving the moisture content.
The provided sieves guarantee an optimum particle size distribution so that it is not necessary to recalibrate the NIR spectrometer. The rotor speed can be adjusted in 3 steps allowing for perfect adaptation to the sample requirements. Cleaning the mill is quick and easy as the air jet effects a complete discharge of the material from the grinding chamber.
This new cyclone mill in proven RETSCH quality optimizes the reproducible sample preparation to NIR analysis thus allowing for meaningful and reliable analysis results.

To find the best solution for your sample preparation task, visit our application database.

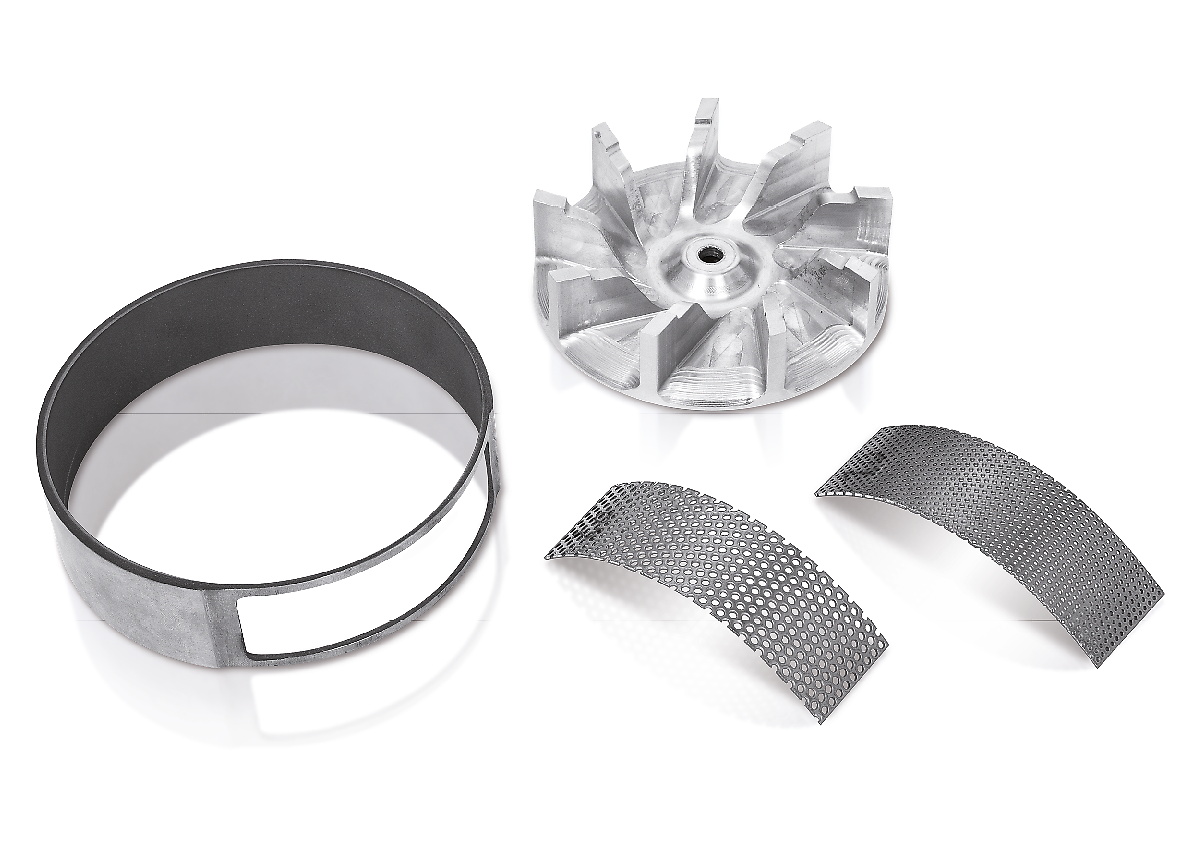

In the cyclone mill TWISTER size reduction is effected by impact and friction between the rotor and the friction surface of the fixed grinding ring. The feed material passes through the hopper (with splash-back protection) onto the rotor which is rotating with high speed and is thus submitted to preliminary size reduction. The sample is then thrown outwards by centrifugal acceleration and is pulverized between rotor and grinding ring. The 2-step grinding ensures particularly gentle but fast processing. The feed material only  remains in the grinding chamber for a very short time. The integrated cyclone provides cooling of the sample and the grinding tools. This guarantees preservation of the sample properties to be determined. The ground material is separated in the cyclone and collected in a sample bottle.
