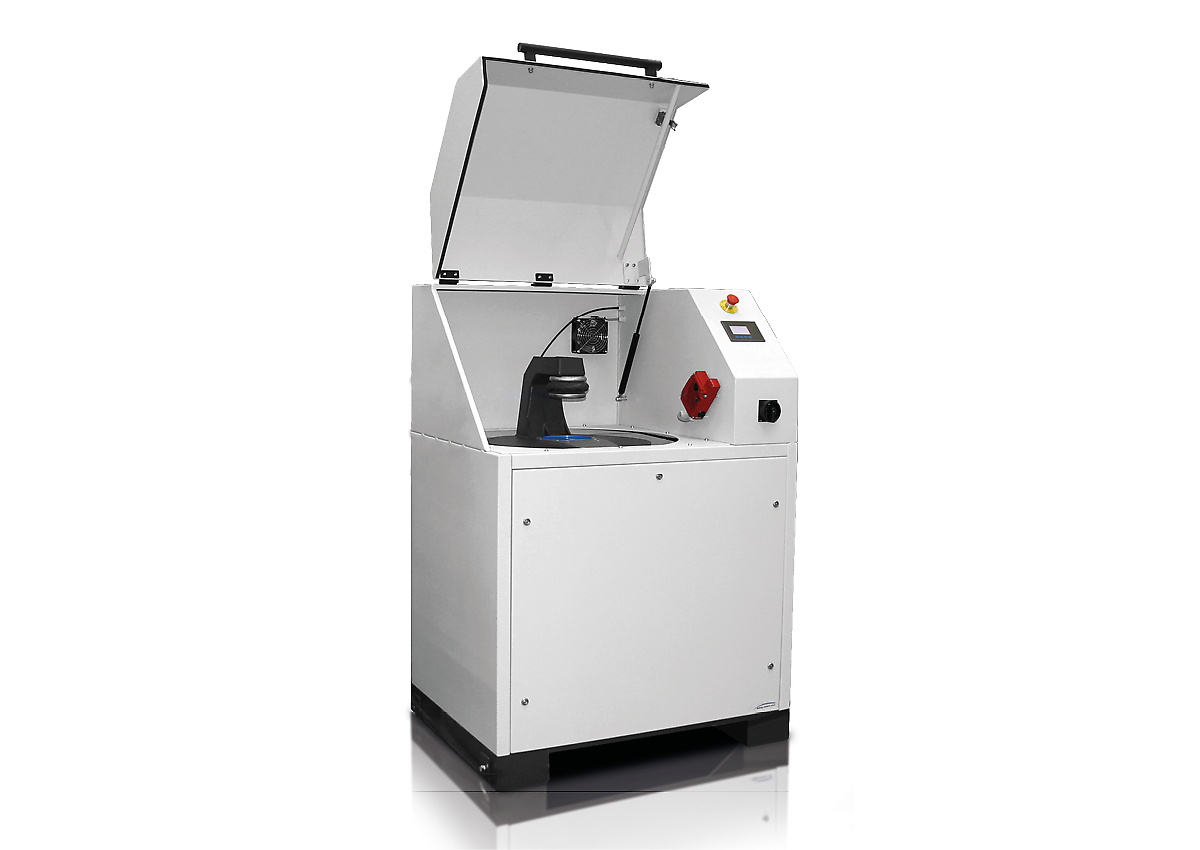

No grinder can beat the speed of a Vibratory Disc Mill when it comes to preparing samples for spectral analyses. RETSCH’s Vibratory Disc Mill RS 300 is suitable for rapid, loss-free and reproducible grinding of medium-hard, brittle and fibrous materials.
Thanks to the robust universal drive shaft, which sets the grinding jar into a 3D motion, the RS 300 accepts grinding set weights of up to 30 kg. The closed grinding system guarantees complete processing of the sample.
Grinding sets are available in a variety of sizes and materials, allowing for easy adaptation to application requirements.

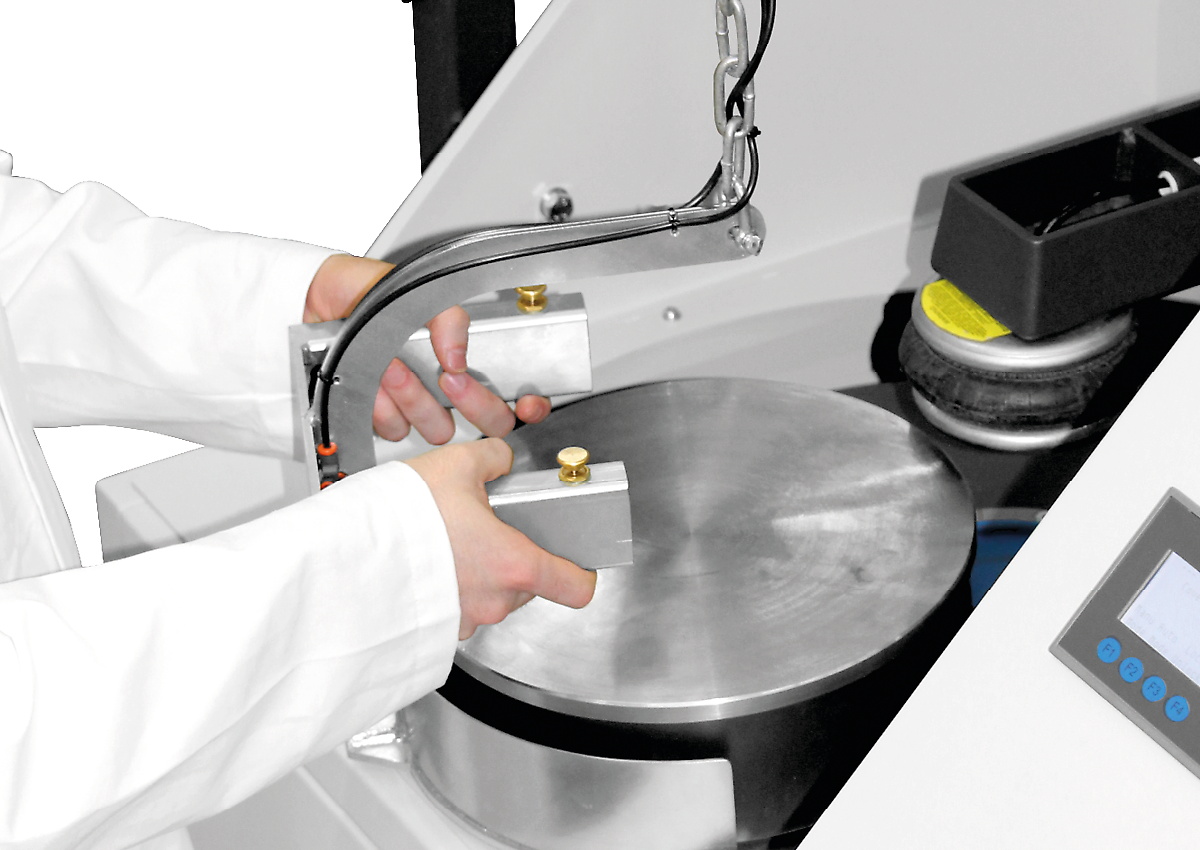

Operation and handling of the RS 300 and its grinding sets is convenient and ergonomic. The AutoLifter is an optional accessory which greatly facilitates ergonomic lowering and lifting of the high-capacity grinding sets. It is simply placed around the grinding set and activated by pushing a button.
The pneumatic clamping device allows for convenient and safe fastening of the jar. The mill only starts if the pneumatic pressure is correct and the device lifts automatically when the grinding process stops.
The grinding parameters are entered using a keypad. While the programmable interval function helps to improve grinding results, the autoreverse function reduces caking effects inside the grinding jar.
Thanks to a variety of sizes and materials of the grinding sets, the RS 300 is suitable for a wide range of applications. The mill accommodates batch sizes from 35 ml to 2000 ml and material feed sizes up to 20 mm.

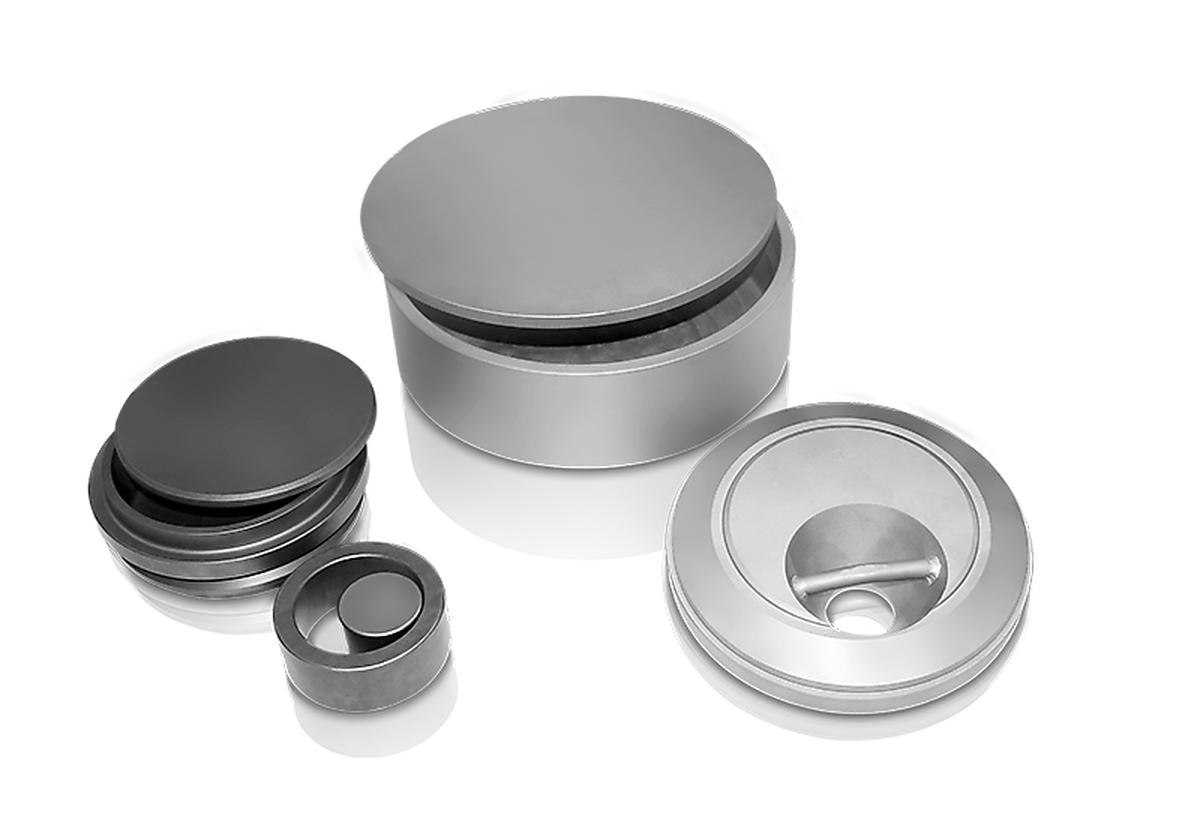

A grinding set for the vibratory disc mill consists of a grinding jar with cover and a grinding disc. The 400 ml grinding set also contains a grinding ring, the 300 ml grinding sets has two additional grinding rings.
The grinding sets are characterized by the following features:
RETSCH’s Vibratory Disc Mills rapidly pulverize materials such as cement, cement clinker, ceramics, coal, coke, concrete, corundum, glass, metal oxides, minerals, ores, silicate, slag, soil, etc.
slagg
electronikkskrot
iridium
dolomite
To find the best solution for your sample preparation task, visit our application database.
| funksjon | knusing, blanding, pulverisering |
| bruksområde | byggematerialer, geologi / metallurgi, glass / keramikk, miljø / gjenvinning |
| matemateriale | middels hardt, hardt, sprøtt, fibrøs |
| nedmalingsprinsipp | trykk, friksjon |
| matestørrelse* | < 20 mm |
| sluttfinhet* | < 20 µm |
| prøvevolum* | 35 - 2,000 ml |
| turtall ved 50 Hz (60 Hz) | 912 min-1 |
| material i maleverktøyet | chrome steel (hardened steel), wolframkarbid, stål 1.1740 (for tungmetallfri nedmaling) |
| Størrelse på malebeger | 50 ml / 100 ml / 300 ml / 400 ml / 800 ml / 1,000 ml / 2,000 ml |
| innstilling av maletid | digital, 00:00 to 59:59 |
| drift | trefasemotor |
| drivkraft | 2.2 kW |
| Elektriske tilkoblingsdata | ulike spenninger |
| Nettilkobling | 3-fase |
| kapslingstype | IP 40 |
| b x h x d lukket | 1150 x 1400 x 810 mm |
| nettovekt | ~ 415 kg (without grinding set) |
| Normer / standarer | CE |
The vibratory disc mill comminutes by impact and friction. The grinding set is firmly attached to the vibration plate with a pneumatic quick clamping device. The plate with the grinding set is subjected to 3-D vibrations.
The sample is crushed by extreme pressure, impact and friction generated by centrifugal forces acting on the grinding rings in the dish.The vibrations are produced by a frequency controlled 2.2 kW 3-phase motor.
Med forbehold om feil og tekniske endringer
