The analytical sieve shakers of the series AS 200 are used in research & development, quality control of raw materials, interim and finished products as well as in production monitoring. The controllable electromagnetic drive offers an optimal adaption for every product. Sharp fractions are obtained even after very short sieving times.
With its all-digital controls, up to 99 sieving programs and calibration certificate the sieve shaker AS 200 control is indispensable for all users who attach importance to precision and operational convenience and need to comply with the guidelines of the ISO 9001.
The AS 200 control can be calibrated to ensure 100% reproducibility of sieving results, not only in one device, but among all AS 200 control units! Accordingly, this model is perfectly suited to check particle size distributions for quality control, for example between suppliers and customers.
Product Video
"The software and machine is easy to use. You can put the sieves in the dishwasher. "
M. Becker
Haribo Produktions GmbH
"We use a vibratory sieve shaker in a glove box, for this reason, it is very important for us to have precise and trustworthy equipment. "
Daniel Yorio
Canadian National Energy Alliance
"Results are very accurate, good sturdy piece of equipment and excellent service and support from Retsch. "
Diane Mee
Doff Portland Ltd.
"These sieve shakers last long and require little maintenance. We use them daily and we have several that are over 10 years old."
Heidi Bartel
Microvention
"Retsch devices are reliable, they contribute to obtaining excellent results that are accurate and precise (excellent repeatability). "
Tamara Djordjevic
Profi Lab
"We have been using a Retsch AS200 Sieve Shaker for 20+ years. The instrument is reliable and easy to use. We get it calibrated yearly and never have any discrepancies for the instrument being out of specification. "
Tiffany Brenner
PPG

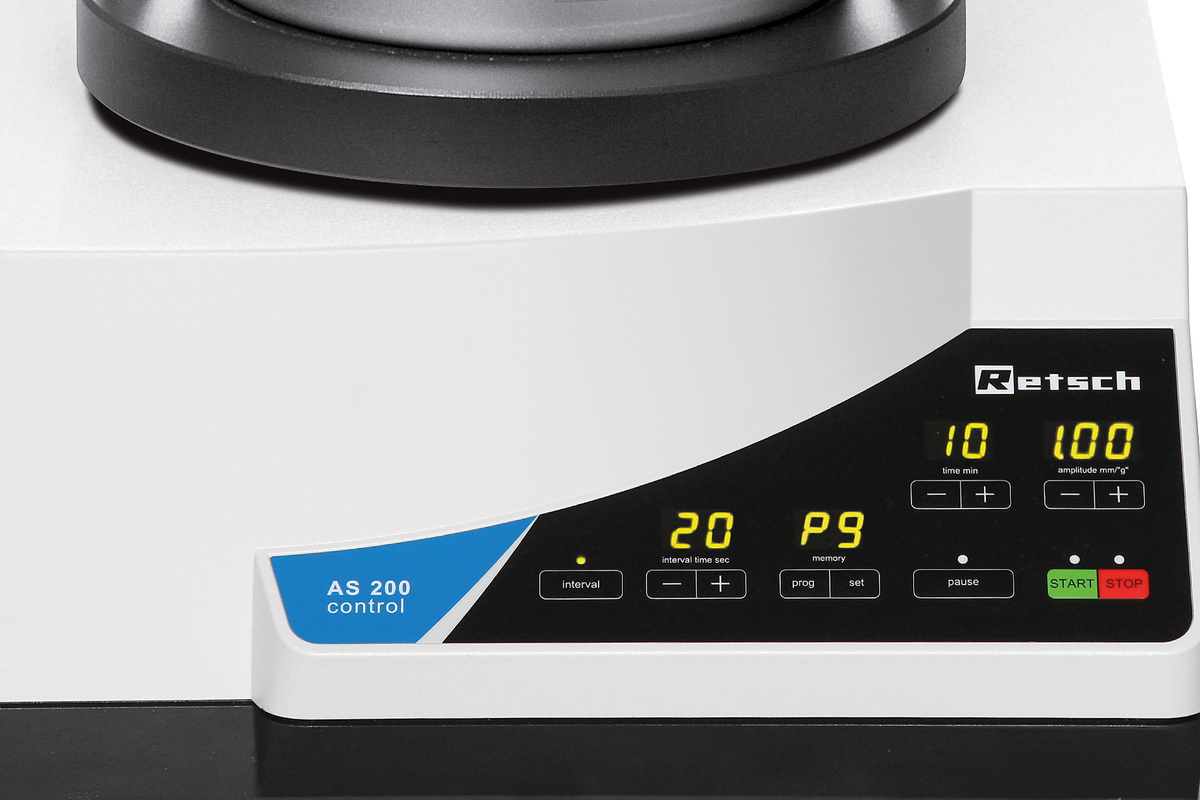

Operation of the AS 200 control is convenient and easy. All sieving parameters – vibration height, time, interval – are set, displayed and monitored digitally. Up to 99 parameter combinations (SOPs) can be stored for routine analyses. Through the integrated interface the instrument can be connected to a PC and controlled with the evaluation software EasySieve®. This program enables the user to control the whole sieving process and the subsequent documentation with convenience and accuracy.
There are many applications for which wet sieving is the best solution, e.g. when the material to be tested is a suspension or when a very fine sample (< 45 μm) that tends to agglomerate needs to be sieved. All vibratory sieve shakers from RETSCH can be used for wet sieving. There are special accessories like clamping lids with spray nozzle and collecting pans with outlet available. By placing RETSCH’s venting rings between the sieves, air cushions can expand without letting liquid or sample material escape.
The sieve shakers of the control series can be equipped with a variety of accessories to provide for a wealth of application requirements.
With the RETSCH clamping devices the sieves are clamped safely, quickly and conveniently on the sieve shaker. The clamping devices “comfort” are particularly user-friendly and timesaving.
Collecting pans, intermediate pans, intermediate rings and sieve lids.
Clamping lid with nozzle, collecting pans with outlet, venting rings.
Chain rings, brushes, cubes, balls (e.g. for reducing agglomerations when sieving particles < 100 μm and keeping the mesh free).
We provide IQ/OQ documentation for the „control“ sieve shakers to support IQ/OQ certification by our customers.
Suitable for thorough cleaning of test sieves and for quick, gentle drying of samples and sieves.

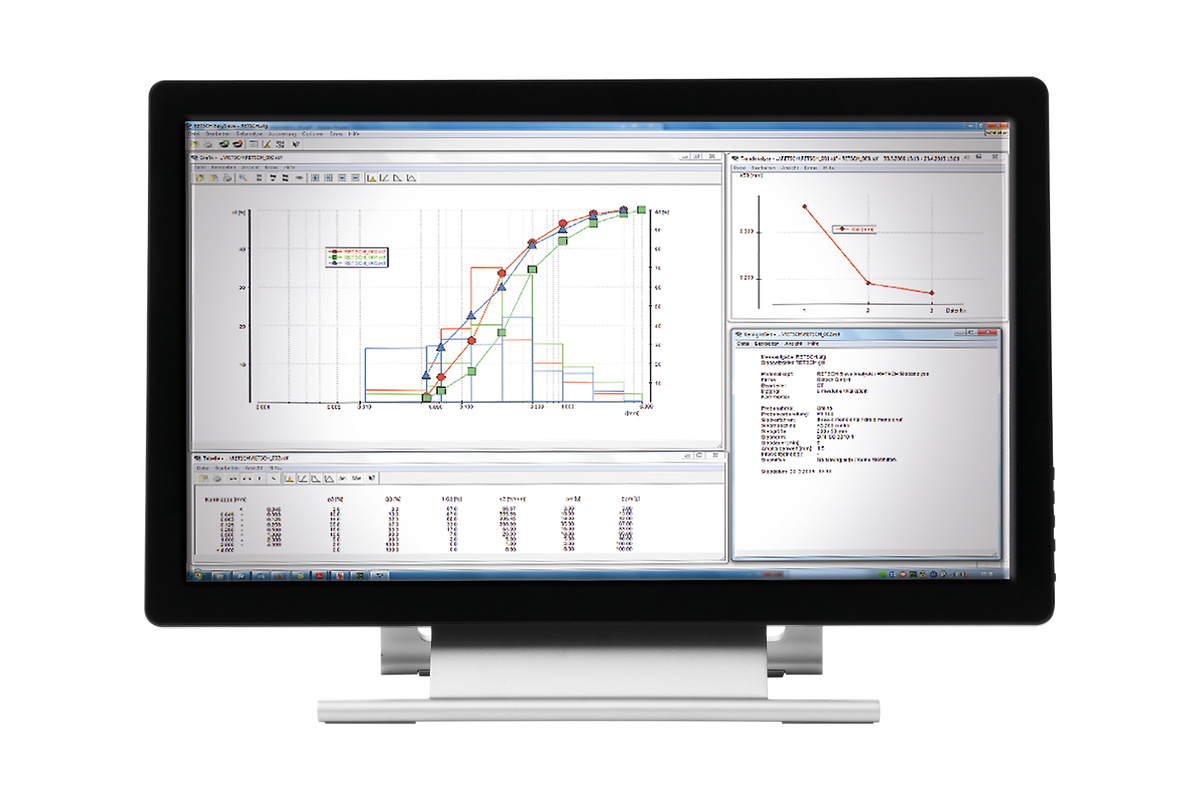

EasySieve, the software for particle size analyses, exceeds manual evaluation in many aspects. The software is able to automatically control the necessary measurement and weighing procedures – from the registration of the weight of the sieve up to the evaluation of the data. It is simple and convenient to use and is also available in an FDA 21 CFR Part 11 compliant version.
Vibratory sieve shakers are frequently used for grain size analysis of cement clinker, chemicals, coffee, construction materials, fertilizers, fillers, flours, grains, metals powders, minerals, nuts, plastics, sand, seeds, soils, washing powder, etc.
kaffe
soil
kornprodukter
To find the best solution for your sample preparation task, visit our application database.
| funksjon | separering, fraksjonering, bestemmelse av partikkelstørrelse |
| bruksområde | biologi, byggematerialer, geologi / metallurgi, glass / keramikk, kjemi / plast, landbruk, maskinbygging / elektroteknikk, matvarer, medisin / legemidler, miljø / gjenvinning |
| matemateriale | pulver, massegods, suspensjoner |
| måleområde* | 20 µm - 25 mm |
| bevegelse av siktematerialet | kast med dreieimpuls |
| maksimal ladning / siktemateriale | 3 kg |
| maksimalt antall fraksjoner | 11 / 22 |
| maksimal vekt på siktematerialet | 6 kg |
| amplitude | digital, 0.20 – 3.00 mm |
| Controlled amplitude | ja |
| siktebunnsakselerasjon | 1.0 - 15.1 g |
| tidsvisning | digital, 1 - 99 min |
| intervalldrift | 1 - 99 s |
| SOPer som kan lagres | 99 |
| egnet for tørrsikting | ja |
| egnet for våtsikting | ja |
| USB interface | ja |
| med testsertifikat / kan kalibreres | ja |
| egnede siktediametre | 100 mm / 200 mm / 203 mm (8") |
| maksimal høyde på siktematerialet | 620 mm |
| Klemmeinnretninger | standard, "comfort", each for wet and dry sieving |
| kapslingstype | IP 21 |
| Elektriske tilkoblingsdata | 100-240 V, 50/60 Hz |
| Nettilkobling | 1-fase |
| b x h x d | 417 x 212 x 384 mm |
| nettovekt | ~ 35 kg |
| Normer / standarer | CE |
All sieve shakers of the series AS 200 work with an electromagnetic drive that is patented by RETSCH (EP 0642844). This drive produces a 3D throwing motion that moves the product to be sieved equally over the whole sieving surface. The advantage: high stress capacity, extremely smooth operation and short sieving times with high separation efficiency.
